8CH DSP Audio Processor , Profesisonal Echo Cancellation DSP CE ROHS

Name: 8CH DSP Audio Processor Profesisonal Echo Cancellation DSP CE ROHS
Brand: FHB Audio
Price: 1 USD

China 8CH DSP Audio Processor , Profesisonal Echo Cancellation DSP CE ROHS wholesale

Brand Name : FHB Audio

Model Number : MX-0808D

Certification : CE,ROHS

Place of Origin : China

MOQ : 2 Set

Price : USD

Payment Terms : T/T, Western Union

Supply Ability : 10000 Set per Month

Delivery Time : 1-10Set: 5-7day ;10-100Set:10-5Days

Packaging Details : Standard packaging;GW:3.5KG/Set;5Set in one Carton(60*60*36cm);

Products Name : Dante DSP

Keyword : DSP Sound Processor,DSP Audio Matrix

Model No. : MX-0808D

Analog Channels : 8 input,8 output

Dante Channel : 8 input,8 output

DSP processing : Automatic mixing, AEC,ANC,AFS

DSP Chips : Ti 456MHz FLOPS DSP

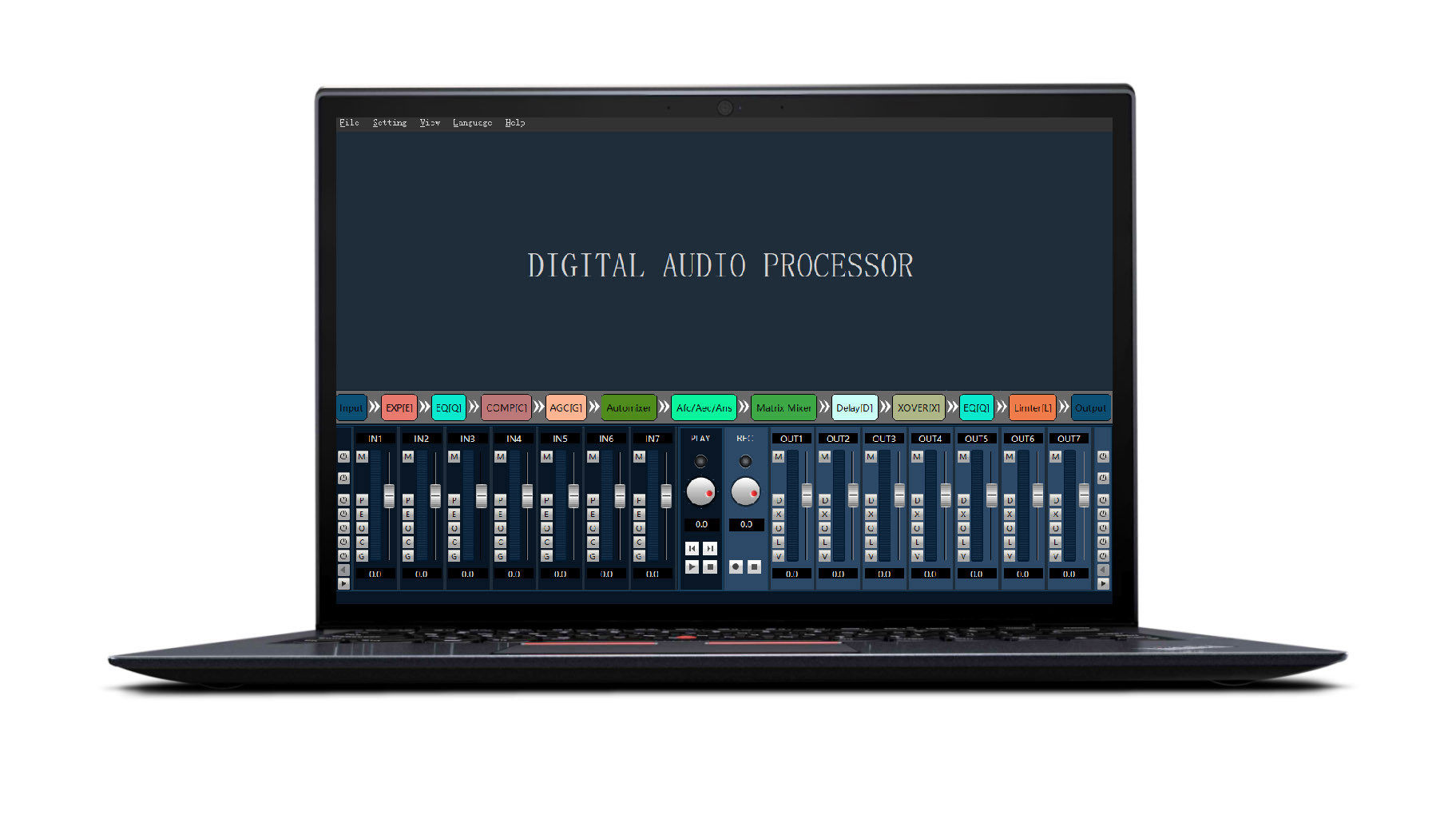

Software : PC,Adorid,IOS,Ipad,Web control

Digitalizing bit : 24bit

Sampling Rate : 48k

Application : Conference,Education,Hotel

Warranty : 2 Years

Certificate : CE,ROHS

Weight : 3Kg

Working Power Supply : AC110V-220V,50Hz/60Hz

Contact Now

CE ROHS listed profesisonal 8CH echo cancellation Dante DSP Audio processor

Description:

The MX-0808D audio processor is a freely designed audio processing and control system.It adopts advanced DSP processing technology, has a new automatic mixing, Feedback elimination, etc, targeted to solve various practical problems in the application scene.

8CH DSP Audio Processor , Profesisonal Echo Cancellation DSP CE ROHS

Main Features:

USB Background music playback and recording function
Support mobile phone, tablet control and distributed cloud control
DSP audio processing, built-in automatic mixer, feedback elimination(AFC), echo elimination(AEC), noise elimination (ANC) function
Input per channel:Front stage amplifier, signal generator, expander, compressor, 5 stage parameter equalization
Output per channel:31 Section diagram equalizer, delay device, frequency divider, limiter
Full function matrix remix
Built-in automatic camera tracking function
Support for scenario presets；
Automatic memory protection when power off
1U Whole aluminum chassis
Built in Dante Module

8CH DSP Audio Processor , Profesisonal Echo Cancellation DSP CE ROHS

Specification:

Model No.	MX-0808D
DSP Processing	Ti 456MHz FLOPS DSP
Number of analog channels	8 Input +8 Output
Number of Dante channels	8 Input +8 Output
Core Algorithm	Automatic mixing, feedback elimination(AFC), echo elimination(AEC), noise elimination(ANC)
GPIO	8 ( Including input and output)
RS232/RS485	1
RJ45 control interface	1
USB Port	1
RJ11 phone interface	0
DANTE network interface	2
Simulated maximum gain	51dB
Digitalizing bit	24bit
Sampling Rate	48k
Frequency Response(20~20KHz)	±0.2dB
Analog-to-digital dynamic range (A-weighted)	114dB
Digital-to-analog dynamic range (A-weighted)	120dB
Input to output dynamic range	108dB
Total harmonic distortion + noise	＜0.003% @1KHz ,4dBu
Floor noise (A- weighted)	-90dBu

Delay storage	2s
Analog input to output system delay	3ms
Input impedance (balance -type)	20KΩ
Output impedance (balance -type)	100Ω
Maximum Input Level	+18dBu,balance
Maximum Output Level	+18dBu,balance
Equivalent input noise EIN(20-20kHz,A-weighted).	≤-131dBU
Phantom power (per input)	48V
Input common mode rejection,60Hz	70dB
Channel Isolation,1kHz	104dB
Dimensions (WDH)	48225845(mm)
Weight	3Kg
Power Consumption	<40W
Operating Temperature	-10 - 50℃
Working Power Supply	AC110V-220V,50Hz/60Hz

FAQ:

Q1: Are you manufacturer or trade company?
A: We are manufacturer,which located in Shenzhen, Guangdong, China.

Q2: Do you offer OEM&ODM service?
A: Yes, We can provide OEM or ODM Solution depends on client requirements

Q3: What's the quality standard of your products?
A: Our products has approved CE, ROHS certification.

Q4: Which place will use FHB equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Airports, Parliaments, Education institutes, Hotel, Private corporate conference hall etc,.

Q5: What’s the delivery time?

A:Sample order: During 5days,Bulk order:10-15days
